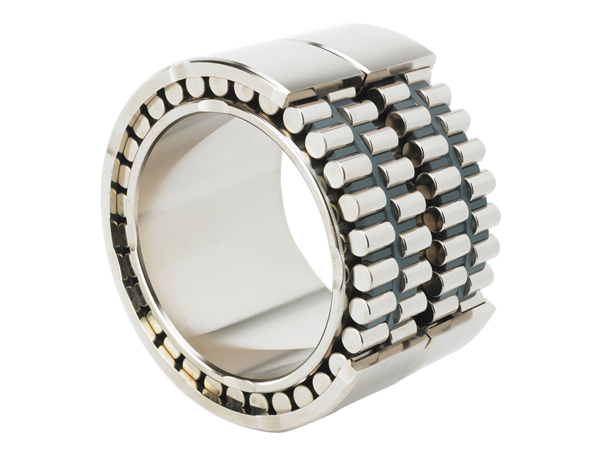

四列圆柱滚子轴承

四列圆柱滚子轴承

四列圆柱滚子轴承

d 80-1200mm四列圆柱滚子轴承是冶金轧制行业和有色金属及橡塑压延行业使用的各类轧机轧辊支承轴承中应用最广泛的一种轴承。
此种轴承的主要特点和结构形式是：
1、轴承的主要特点
　a、轴承在有限的安装空间内，具有最大额定动载荷值，并可用于高转速及高精度轧制；
　b、轴承允许有较精密的极限公差；
　c、内圈允许与外组件(外圈、成套滚子)互换装配，有利于快速换辊。

咨询热线：13861477666
注：询购请选择型号

产品尺寸与参数

FC1623108

FC202870

FC202880

FC2028104

FC202970

FC2030106

FC223080

FC2230120

FC223490

FC223492

FC2234120

FC233390

FC243387

FC243490

FC243692

FC2436105

FC2436120

FC2443102

FC2443174

FC263590

FC2640104

FC2640110

FC2640125

FC2838119

FC284280

FC2842100

FC2842106

FC2842116

FC2842125

FC2842155

FC2942155

FC2945156

FC2946156

FC3042120

FC3044120

FC3044150

FC3045112

FC3045120

FC3045150

FC3046130

FC3046150

FC3046156

FC3244180

FC3245120

FC3246130

FC3246130E

FC3246168

FC3246168E

FC3246168E1

FC3246180

FC3248120

FC3248124

FC3248168

FC3248170

FC3446120

FC3446130

FC3448130

FC3448156

FC3450150

FC3450168

FC3450170

FC3451180

FC3452120

FC3452150

FC3452170

FC3452192

FC3452225

FC3650130

FC3650156

FC3650156E

FC3652120

FC3652124

FC3652156

FC3652160

FC3652168

FC3652180

FC3653180

FC3656180

FC3656200

FC3658192

FC3852168

FC3852168E

FC3853124

FC3854166

FC3854168

FC3854170

FC3854200

FC3856200

FC4050200

FC4053180

FC4054120

FC4054170

FC4056170

FC4056188

FC4056190

FC4056200E

FC4056200

FC4058130

FC4058192

FC4058202

FC4062130

FC4062200

FC4062230

FC4064216

FC4258192

FC4258192E

FC4260170

FC4260210

FC4458192

FC4460160

FC4460190

FC4460192

FCD4460200

FC4462190

FC4462192

FC4462192E

FCD4462204

FCD4462215

FCD4462225E

FCD4462225

FC4464160

FC4464192

FCD4464210

FCD4464210E

FCD4466230

FC4468180

FC4468192

FCD4468210

FCD4468290

FCD4469210

FC4666170

FC4666206E

FC4666206

FCD4668260

FCD4673250

FC4866180

FCD4866220

FCD4866220E

FC4868192

FCD4868220

FCD4870220

FC4872290

FCD4872220E

FCD4872220

FC4872218

FC5068170

FC5068220

FCD5068230

FC5070220E

FC5070220

FCD5070230

FC5072220

FC5272192

FC5272200

FC5272204

FC5272230

FCD5272260

FC5274192

FC5274200

FC5274230

FC5274220

FC5276220

FCD5276280E

FCD5276280

FCD5280290

FCD5280335

FC5374234

FC5476230

FCD5476275E

FCD5476275

FC5478220

FCD5478240

FC5480220

FC5675200

FC5676170

FC5676192

FCD5676290

FC5678220

FC5678240

FCD5678275

FCD5678275E

FCD5680285

FCD5682300

FCD5684280

FCD5684300

FC5878190

FC5878234

FC5880180

FC5882240

FCD5884300

FCD5888310

FCD6080300

FCD6084180

FC6084218

FC6084240

FC6084240E

FCD6084300

FCD6088320

FCD6092270

FCD6092350

FC6286240

FC6488240

FCD6488286

FCD6488300

FC6490240

FC6490240E

FC6490180

FCD6492240

FC6890250E

FC6890250E1

FC6890250

FC6892260

FC6896280

FCD6896350

FCD6898300

FCD72102370

FCD72102380

FCDP72102400

FCDP72104380

FCD7496230

FCD7496250

FCDP74104380

FCDP74104400

FCDP74106400

FCDP74108400

FCDP75109400

FCD76104280

FCD76100290

FCD76104280E

FCD76104290

FCD76104300

FCD76108300

FCD76108340

FCD76108380

FCDP76108400E

FCDP76108400

FCDP76112300

FCDP76112325

FCD78102290

FCD78108320

FCD78110310

FCDP78110400

FCD80104250

FCDP80108380

FCDP80110300E

FCDP80110300

FCDP80112400

FCDP80112410

FCDP80118440

FCDP82112400

FCDP82120440

FCD84112280

FCD84116260

FCD84116320

FCDP84120440

FCD84124300

FCDP84124400E

FCDP84124400

FCD86114340

FCDP86118420

FCDP88124450E

FCDP88124450

FCD88130355

FCDP88132340

FCDP89120435

FCDP89127375

FCD90118300

FCDP90118435

FCDP90126450

FCD92122320

FCD92124320

FCD92124400

FCD92130355

FCDP92130424

FCDP92130470

FCDP92132475

FCDP92134500

FCDP92140540

FCDP95120368

FCDP6130340

FCDP96130420

FCDP96130450

FCD96136420

FCDP96136500

FCDP96136500E

FCDP96136500E1

FCDP96140500

FCDP96140530

FCDP99123360

FCDP100130260

FCDP100134450E

FCDP100134450

FCDP100136450

FCDP100138470

FCDP100138510

FCDP100140500

FCDP100140515

FCDP100142480

FCDP100144400

FCDP100144530

FCDP100144530E

FCDP102134320

FCDP102136500

FCDP102140540

FCDP102146520E

FCDP102146520

FCDP102152550

FCDP104140540

FCDP104147535

FCDP104150530

FCDP106140540

FCDP102146520E

FCDP102146520

FCDP102152550

FCDP104140540

FCDP104147535

FCDP104150530

FCDP106140540

FCDP110160520E

FCDP110160520

FCDP110160560

FCDP112136360

FCDP112160600

FCDP112164600

FCDP112164630

FCDP114150530

FCDP114163594

FCDP114166600

FCDP116170640

FCDP118164590

FCD120164550

FCDP120164575

FCDP120174540

FCDP120174640E

FCDP120174640

FCDP120184680

FCDP122164430

FCDP122170570

FCDP122174660

FCDP126160360

FCDP126170436

FCDP126180670

FCDP128174610

FCDP128176600

FCDP130180650

FCDP130184670

FCDP130184690

FCDP130184690E

FCDP132164440

FCDP132176450

FCDP134174530

FCDP134190690

FCDP134190700

FCDP136188600

FCDP136196640

FCDP138196715

FCDP138196750

FCDP140186620

FCDP140196700

FCDP140200710

FCDP142200715

FCDP142204710

FCDP145200700

FCDP146188500

FCDP146192620

FCDP146200700

FCDP146206750

FCDP150200500

FCDP150200670

FCDP150218615

FCDP151214750

FCDP152206750E

FCDP152206750

FCDP152216790

FCDP156214780

FCDP158224810

FCD160216700

FCDP160216700E

FCDP160216750

FCDP160230850

FCDP164226800

FCDP164232840

FCDP164232840E

FCDP166216710

FCDP168232840

FCDP168236880

FCDP170230650

FCDP170230800

FCDP170230840

FCDP170236650

FCDP170236850E

FCDP170236850

FCDP170244900

FCDP172226670

FCDP172228750

FCDP173236750

FCDP176228800

FCDP180244840

FCDP180256930

FCDP184256865

FCDP1882641000

FCDP190260850

FCDP190272975

FCDP1902721000

FCDP1902721000

FCDP196262880

FCDP1962721000

FCDP198272760

FCDP200262880

FCDP200272800E

FCDP200272800

FCDP206276850

FCDP2082881000

FCDP212272800

FCDP2203001000

FCDP2243161150

FCDP230300760

FCDP2403181050E

FCDP2403181050

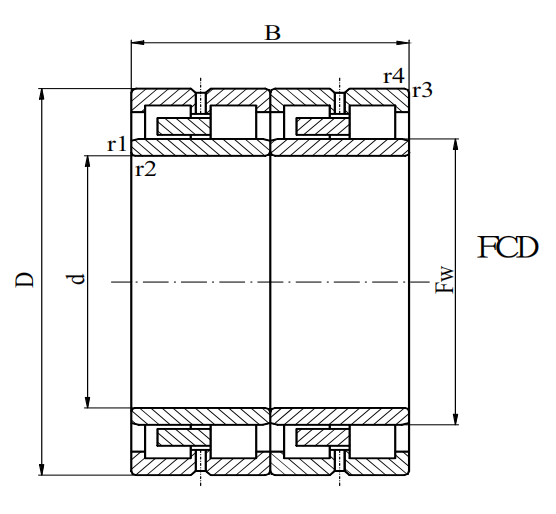

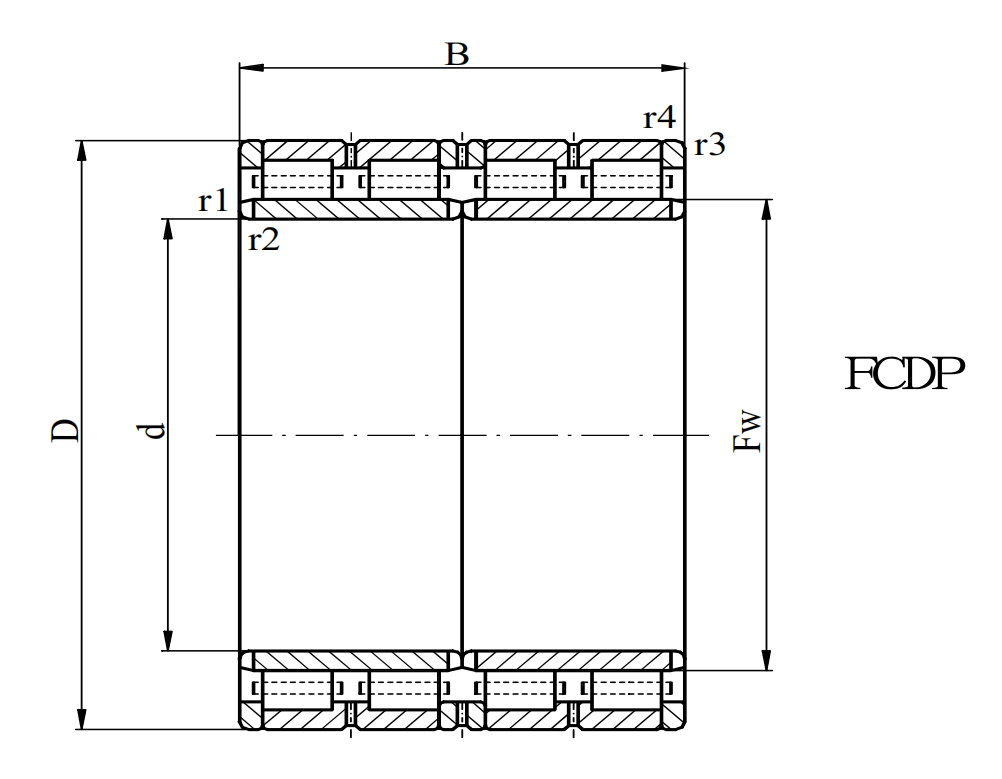

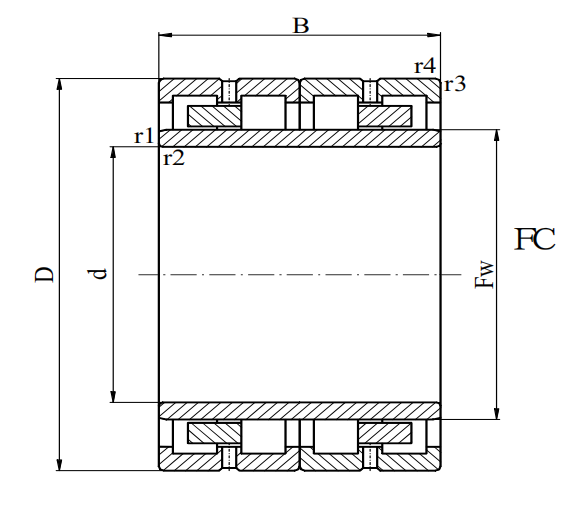

查看 型号 外形尺寸 mm 基本额定载荷KN 计算参数 参考重量kg 参考国外轴承代号
d D B T C H Fw Cr Cor e Y1 Y2 Yo 内圈 轴承 SKF FAG NTN NSK TMKEN
FC1623108 80 115 108 90 284 656 1.13 3.76
FC202870 100 140 70 111 298 606 1.00 3.20
FC202880 100 140 80 111 238 484 1.40 3.50
FC2028104 100 140 104 111 400 820 1.50 4.90 100RV1401
FC202970 100 145 70 113 248 542 1.18 3.61
FC2030106 100 150 106 113 470 854 1.78 6.43
FC223080 110 150 80 122 200 520 1.35 4.40
FC2230120 110 150 120 122 370 800 2.05 6.28
FC223490 110 170 90 127 428 752 2.21 7.30
FC223492 110 170 92 127 379 752 2.27 7.78
FC2234120 110 170 120 127 615 1180 3.00 9.90 110RV1701
FC233390 115 165 90 132 398 715 2.32 6.52
FC243387 120 165 87 132 374 745 1.997 5.66 120RV1601
FC243490 120 170 90 133 337 787 1.81 6.51
FC243692 120 180 92 137 427 751 2.50 7.79 4R2437
FC2436105 120 180 105 135 550 1200 2.50 9.00 4R2438
FC2436120 120 180 120 136 477 1061 3.02 11.2
FC2443102 120 215 102 148 605 1072 4.70 16.3
FC2443174 120 215 174 147 1060 1600 7.70 27.3 120RV2101
FC263590 130 175 90 143 291 783 1.96 6.85
FC2640104 130 200 104 150 566 998 3.52 11.5 4R2628
FC2640110 130 200 110 150 608 1040 3.78 13.0
FC2640125 130 200 125 149 700 1190 4.04 14.2 130RV2001
FC2838119 140 190 119 154 704 1248 2.95 9.50
FC284280 140 210 80 156 500 970 2.29 9.40
FC2842100 140 210 100 158 715 1248 3.30 12.1
FC2842106 140 210 106 158 715 1248 3.50 12.6
FC2842116 140 210 116 160 640 1130 4.27 13.9 4R2823 140RV2101
FC2842125 140 210 125 158 715 1265 4.10 14.9
FC2842155 140 210 155 158 715 1331 5.10 18.7
FC2942155 145 210 155 166 1080 1930 6.15 18.4 314625 511605 4R2906 145RV2101
FC2945156 145 225 156 169 1250 1960 7.20 22.2 313924A 512764 4R2908 145RV2201
FC2946156 145 230 156 169 886 1827 7.20 24.7
FC3042120 150 210 120 166 587 1380 3.70 12.7
FC3044120 150 220 120 167 702 1193 3.98 14.5
FC3044150 150 220 150 900 1700
FC3045112 150 225 112 170 550 1210 2.16 15.3
FC3045120 150 225 120 169 702 1408 4.50 16.1
FC3045150 150 225 150 169 801 1670 5.60 20.4
FC3046130 150 230 130 174 845 1520 6.20 19.7 4R3029 150RV2301
FC3046150 150 230 150 177 950 1790 8.10 23.5
FC3046156 150 230 156 174 1250 2080 7.44 24.6 313891A 508955 4R3040 150RV2302
FC3244180 160 220 180 177 964 2560 6.32 20.2 4R3224
FC3245120 160 225 120 177 639 1340 4.21 14.9
FC3246130 160 230 130 178 781 1320 4.84 16.8
FC3246130E 160 230 130 180 830 1340 5.41 17.6 314190 541515 4R3226
FC3246168 160 230 168 177 1040 2170 5.90 22.1
FC3246168E 160 230 168 179 1160 2200 6.63 23.5 315189A 510150 4R3232
FC3246168E1 160 230 168 180 1040 2200 7.00 23.5 160RV2302
FC3246180 160 230 180 178 1080 2280 6.71 24.6 160RV2303
FC3248120 160 240 120 183 745 1320 5.80 18.6 160RV2401
FC3248124 160 240 124 183 635 1301 6.00 19.0
FC3248168 160 240 168 183 1042 2310 8.10 26.1
FC3248170 160 240 170 183 1080 2290 8.22 27.8 4R3225 160RV2402
FC3446120 170 230 120 187 819 1610 4.46 14.3 4R3426 170RV2301
FC3446130 170 230 130 188.5 780 1400 5.20 15.2 313673 508370
FC3448130 170 240 130 190 913 1830 5.70 18.3 BC4B635122 510440B
FC3448156 170 240 156 189 972 2170 6.52 22.2 4R3429
FC3450150 170 250 150 192 720 1716 7.32 25.1
FC3450168 170 250 168 192 1210 2320 8.20 28.1 170RV2501
FC3450170 170 250 170 192 1210 2418 8.26 28.6 4R3425 170RV2502
FC3451180 170 255 180 193 1380 2500 9.21 30.5 4R3425 170RV2503
FC3452120 170 260 120 195 860 1752 6.70 23.2
FC3452150 170 260 150 195 1030 1840 8.30 28.8 170RV2602
FC3452170 170 260 170 195 1034 2096 9.50 32.7
FC3452192 170 260 192 195 1087 2240 10.7 36.9
FC3452225 170 260 225 196 1930 3350 13.0 43.3 313587B 505470 4R3431
FC3650130 180 250 130 200 716 1922 6.05 19.5
FC3650156 180 250 156 198 880 2230 6.18 43.3 4R3625 180RV2501
FC3650156E 180 250 156 200 1020 2230 6.20 21.1
FC3652120 180 260 120 202 735 1577 6.40 21.7
FC3652124 180 260 124 202 735 1577 6.50 27.3
FC3652156 180 260 156 198 835 2200 6.50 27.3
FC3652160 180 260 160 202 880 2230 8.24 28.4
FC3652168 180 260 168 202 1280 2500 8.60 29.5 313812 507536 4R3628 180RV2601
FC3652180 180 260 180 202 1100 2800 9.16 32.9
FC3653180 180 260 180 204 1340 2690 10.2 33.8 4R3618 180RV2602
FC3656180 180 280 180 207 1287 2995 11.0 41.4
FC3656200 180 280 200 205 1620 2990 11.8 46.3
FC3658192 180 290 192 210 1287 2478 13.8 50.5
FC3852168 190 260 168 208 1140 2520 7.38 25.5
FC3852168E 190 260 168 212 1340 2600 9.10 27.2 313651 507735 4R3820 190RV2601
FC3853124 190 265 124 213 819 1921 7.50 21.3
FC3854166 190 270 166 212 1034 2460 9.00 30.4
FC3854168 190 270 168 212 1034 2460 9.10 30.8
FC3854170 190 270 170 213 1290 2910 9.66 31.7 4R3818 190RV2702
FC3854200 190 280 200 212 1830 3370 10.8 37.5 314199B 508657 4R3821 190RV2701
FC3856200 190 280 200 214 1830 3370 11.9 42.3 314049A 510199 4R3823 190RV2801
FC4050200 200 250 200 215 900 2500 7.63 23.8 200RV2521
FC4053180 200 265 180 217 1200 2790 7.82 27.2
FC4054120 200 270 120 222 617 1630 6.80 19.6
FC4054170 200 270 170 222 1290 2700 9.60 28.5 314553 522742 4R4039
FC4056170 200 280 170 222 1630 3000 10.7 36.2
FC4056188 200 280 188 222 1350 2810 11.3 36.5 200RV2803
FC4056190 200 280 190 223 1460 3100 11.3 36.5 200RV2803
FC4056200E 200 280 200 222 1630 3350 11.3 39.3 313893 508726 4R4037 200RV2802
FC4056200 200 280 200 224 1410 3200 12.4 39..4 200RV2801
FC4058130 200 290 130 226 941 1916 8.90 38.5
FC4058192 200 290 192 226 1730 3310 12.9 42.8 313811 512580 4R4041 200RV2901
FC4058202 200 290 202 226 1540 3310 13.7 43.4
FC4062130 310 130 229 229 1113 2254 9.91 36.3
FC4062200 200 310 200 229 1573 3625 15.3 59.5 524373
FC4062230 200 310 230 2360 4000 17.5 64.3 313639/VJ202 503901.N12BA 200RV3102
FC4064216 200 320 216 231 2120 3900 15.8 67.2 4R4028 200RV3231
FC4258192 210 290 192 1185 3245 12.4 38.2
FC4258192E 210 290 192 247 1700 3400 14.8 46.3 220RV3101
FC4260170 210 300 170 1215 2845
FC4260210 210 300 210 234 1660 3490 13.6 47.9
FC4458192 220 290 192 239 1190 3350 10.3 33.8 4R4413
FC4460160 220 300 160 245 1000 2590 11.4 32.8 4R4419
FC4460190 220 300 160 240 1000 2590 10.7 39.3
FC4460192 220 300 192 242 1219 3323 11.9 39.7
FCD4460200 220 300 200 240 1790 3900 11.3 41.2 BC2B322341/HB1VJ202 567623
FC4462190 220 310 190 246 1320 3450 14.1 45.1
FC4462192 220 310 192 246 1830 3650 14.2 46.3 313839 507333 4R4426
FC4462192E 220 310 192 247 1540 3450 14.8 46.3 220RV3101
FCD4462204 220 310 204 247 1420 3750 15.8 49.8 4R4425
FCD4462215 220 310 215 242 1590 3950
FCD4462225E 220 310 225 244 2200 4300 15.9 54.5 313894B 514461
FCD4462225 220 310 225 245 1940 4150 16.0 54.9 506869 4R4416 220RV3102
FC4464160 220 320 160 245 1190 2250 11.4 46.5 4R4428
FC4464192 220 320 192 1600 3440
FCD4464210 220 320 210 246 1900 3750 15.6 61.2 509216 220RV3203
FCD4464210E 220 320 210 1790 3650
FCD4466230 220 330 230 2360 4000
FC4468180 220 340 180 1500 2750
FC4468192 220 340 192 246 1820 3600 14.2 64.2
FCD4468210 220 340 210 1909 3846 18.2 70.2
FCD4468290 220 340 290 250 3250 5400 25.1 96.3 525147
FCD4469210 220 345 210 250 1909 3846 18.2 73.8
FC4666170 230 330 170 260 1140 2970 15.2 47.4
FC4666206E 230 330 206 258 1520 3800 17.2 58.6 4R4614
FC4666206 230 330 206 260 2080 4000 18.4 58.0 313824 508727 230RV3301
FCD4668260 340 260 261 2390 5100 24.1 81.0 4R4611 230RV3401
FCD4673250 365 250 266 2640 4900 27.2 100 313581A 529113 230RV3601
FC4866180 240 330 180 265 2040 3800 13.9 49.5 635194 504547
FCD4866220 240 330 220 264 1830 4340 16.1 56.4
FCD4866220E 240 330 220 270 2080 4400 20.6 58.0 313921 508368 4R4811 240RV3301
FC4868192 240 340 192 268 1474 3582 16.7 55.4
FCD4868220 240 340 220 220 2400 4200 19.2 71.0 513703 4R4806 240RV3403
FCD4870220 240 350 220 270 1576 4073 20.4 71.0
FC4872290 240 360 218 270 2130 4060 20.4 77.4
FCD4872220E 240 360 220 272 2250 4374 22.0 77.8 240RV3601
FCD4872220 240 360 220 274 1760 4050 23.5 79.6 4R4807
FC4872218 240 360 290 270 3300 6550 27.2 130 BC4B322292A/HB3
FC5068170 250 340 170 274 1392 3488 13.2 45.0
FC5068220 250 340 220 220 1329 3123 16.7 52.8
FCD5068230 250 340 230 270 1700 4350 14.6 65.0
FC5070220E 250 350 220 274 1700 4350 17.0 58.0
FC5070220 250 350 220 278 1930 4350 19.6 65.0 4R5008 250RV3501
FCD5070230 250 350 230 278 1700 4350 20.8 68.7
FC5072220 250 360 220 282 1700 4240 22.9 73.0
FC5272192 260 360 192 288 1609 3874 17.8 60.0
FC5272200 260 360 200 288 1550 4550 18.7 62.0
FC5272204 260 360 204 204 1980 4400 18.4 64.5 314997/VJ202
FC5272230 260 360 230 292 1980 4650 24.9 73.5 BC4B320956
FCD5272260 260 360 260 287 2300 5320 23.5 80.0
FC5274192 260 370 192 291 1670 4012 20.1 60.0
FC5274200 260 370 200 292 1771 4120 21.4 68.9
FC5274230 260 370 230 292 1760 4450 24.8 79.3
FC5274220 260 370 220 292 2160 4650 23.7 76.5 313823 507336 4R5217 260RV2701
FC5276220 260 380 220 292 2104 4900 23.7 85.0
FCD5276280E 260 380 280 294 2820 6250 32.3 108 4R5213 260RV3801
FCD5276280 260 380 280 295 2720 6250 33.3 108
FCD5280290 260 380 290 296 3900 7100 35.2 135 313427B 518214 260RV4001
FCD5280335 260 400 335 4300 7340 38.6 149 521065
FC5374234 265 370 234 300 2500 5400 28.3 80.0 313922 517423
FC5476230 270 380 230 298 2330 5050 22.4 81.8 270RV3801
FCD5476275E 270 380 275 298 3080 6990 26.6 97.8
FCD5476275 270 380 275 300 3080 6990 28.3 102
FC5478220 270 390 220 306 1800 4803 27.9 86.7
FCD5478240 270 390 240 298 2236 5330 23.2 94.0
FC5480220 270 400 220 305 1822 4600 27.2 95.3
FC5675200 280 375 200 307 1500 4310 19.4 63.5
FC5676170 280 380 170 306 1710 3590 15.8 55.0
FC5676192 280 380 192 310 1560 4580 20.5 64.6
FCD5676290 280 380 290 308.5 2750 6950 29.8 75.0 BC4-0001
FC5678220 390 220 312 2240 5000 25.5 81.5 313822 507339 4R5611 280RV3901
FC5678240 280 390 240 312 2360 5500 27.8 90.0 280RV3902
FCD5678275 280 390 275 308 3600 7200 27.7 105 314719C 527104 280RV3903
FCD5678275E 280 390 275 312 3150 6400 31.9 105 513729A 4R5612
FCD5680285 280 400 285 316 3400 7350 37.4 120 120314170/VJ202 513342 280RV4021
FCD5682300 410 300 313 3900 7450 35.9 134 31489/VJ202 510350
FCD5684280 280 420 280 318 2945 7212 39.0 137
FCD5684300 280 420 300 319 3470 7350 42.9 150 313487 507356 280RV4021
FC5878190 290 390 190 316 2050 4550 18.3 67.0 635195
FC5878234 290 390 234 320 2270 5600 26.2 79.6 290RV3901
FC5880180 290 400 180 320 2189 5385 20.1 68.0
FC5882240 290 410 240 320 2570 5600 26.9 103 4R5806 290RV4101
FCD5884300 290 420 300 327 3300 7500 41.9 141 4R5805 290RV4201
FCD5888310 290 440 310 328 4300 9700 44.6 170 517796
FCD6080300 300 400 300 328 2720 6900 32.3 104 E-4R6014 300RV4021
FCD6084180 300 420 180 332 2200 6780 22.3 92.4
FC6084218 300 420 218 332 2350 5010 27.0 93.7
FC6084240 300 420 240 332 2670 5750 29.7 103 300RV4201
FC6084240E 300 420 240 334 2020 5450 31.7 106 E-4R6017
FCD6084300 300 420 300 332 3740 8800 37.2 130 314484D 560840 E-4R6020 300RV4221
FCD6088320 300 440 320 337 2843 8212 46.2 177
FCD6092270 460 270 344 2670 5800 46.9 162 E-4R6019
FCD6092350 300 460 350 341 5500 9700 56.3 250 517795
FC6286240 310 430 240 344.5 2610 5950 33.2 170 E-4R6202 310RV4301
FC6488240 320 440 240 240 351 2169 6100 30.6 113 E-4R6141
FCD6488286 320 440 286 350 6900 8564 35.2 142 537046
FCD6488300 320 440 300 351 2720 8280 38.2 142
FC6490240 320 450 240 354 2320 5750 33.7 125
FC6490240E 320 450 240 355 2700 5750 34.7 116
FC6490180 320 450 180 355 2193 5364 26.0 90.1
FCD6492240 460 240 364 2920 7200 44.2 140 BC4B322216/VJ202 804571
FC6890250E 340 450 250 364 2400 6530 25.8 109
FC6890250E1 450 250 368 2750 6800 30.3 106 340RV4502
FC6890250 340 450 250 371 2720 6750 33.7 124 340RV4501
FC6892260 340 460 260 370 2380 7600 33.9 125
FC6896280 340 480 280 374 2840 7870 41.6 160
FCD6896350 340 480 350 378 5300 11000 58.5 205 314485A 527634 340RV4801
FCD6898300 340 490 300 377 3350 8300 48.7 187 E-4R6804
FCD72102370 360 510 370 397 3756 9870 63.5 273
FCD72102380 360 510 380 399 5200 12300 68.9 249
FCDP72102400 360 510 400 397 4250 11500 68.6 262 E-4R7203
FCDP72104380 360 520 380 405 6200 13700 80.2 266
FCD7496230 370 480 230 400 2100 6250 32.5 106 E-4R7405
FCD7496250 370 480 250 401 2830 7422 36.6 116
FCDP74104380 370 520 380 409 6100 14400 70.7 255 314486A 543975 370RV5211
FCDP74104400 370 520 400 413 4740 11900 82.5 268
FCDP74106400 370 530 400 413 4433 13402 82.5 312
FCDP74108400 370 540 400 415 5250 12400 86.6 311 370RV5401
FCDP75109400 375 545 400 417 6310 14500 81.5 315
FCD76104280 380 520 280 417 3650 9150 50.6 174 E-4R7605 380RV5202
FCD76100290 380 500 290 414 3350 8800 47.9 153 380RV5001
FCD76104280E 380 520 280 426 2860 7200 63.6 185 NNU4976B/DRW33
FCD76104290 380 520 290 418 3750 8850 53.9 182 576360 380RV5201
FCD76104300 380 520 300 416 3550 9600 52.7 210 E-4R7607
FCD76108300 380 540 300 421 5010 11000 60.4 220 313030A 541982
FCD76108340 380 540 340 424 4700 10900 73.7 249 380RV5431
FCD76108380 380 540 380 422 3800 10900 78.4 290
FCDP76108400E 380 540 400 422 6700 14400 82.6 295 BC4B313511B 544794 E-4R7604 380RV5411
FCDP76108400 380 540 400 424 5050 12000 86.7 280 315606 380RV5401
FCDP76112300 380 560 300 424 4950 9650 65.0 260
FCDP76112325 380 560 325 428 5320 10600 77.2 265 BC4B322264/HB1
FCD78102290 390 510 290 424 3400 9000 49.2 156 390RV5101
FCD78108320 390 540 320 431 5500 12200 66.0 230 bc4b322498 578278
FCD78110310 390 550 310 430 5120 11200 62.3 240 313190A
FCDP78110400 390 550 400 343 5150 12400 88.9 303 390RV5521
FCD80104250 400 520 250 432 3000 7700 40.8 137 400RV5202
FCDP80108380 400 540 380 436 4550 9780 70.1 273 533426
FCDP80110300E 400 550 300 438 4460 10400 63.4 213 400RV5501
FCDP80110300 400 550 300 441 4150 9750 63.4 213 400RV5501
FCDP80112400 400 550 400 446 5650 13600 95.4 303 E-4R8007 400RV5612
FCDP80112410 400 560 410 445 7800 16500 95.5 313 313015DC 513769A E-4R8010 400RV5611
FCDP80118440 400 590 440 450 8300 16600 114 415 315802/VJ202 542395
FCDP82112400 410 560 400 450 6700 16600 84.3 300 316689 543736
FCDP82120440 410 600 440 460 9300 18600 117 425 313877B 517436 410RV5601
FCD84112280 420 560 280 457 3930 9350 55.7 191 E-4R8403 420RV5601
FCD84116260 420 580 260 468 3740 9650 67.9 210 BC2B320074A/VJ202
FCD84116320 420 580 320 463 4680 19800 74.4 250 313555C/VJ202 533053
FCDP84120440 420 600 440 470 8150 17600 120 400 313513 545467 420RV6011
FCD84124300 420 620 300 473 5200 15800 87.0 416
FCDP84124400E 420 620 400 473 6930 15600 116 430 314391/VJ202 509394
FCDP84124400 420 620 400 478 5000 13400 127 410 E-4R8401
FCD86114340 430 570 340 465 6000 16800 65.2 260
FCDP86118420 430 591 420 476 5200 13400 107 347 430RV5921
FCDP88124450E 440 620 450 487 8800 19600 120 427 314554B 545628 E-4R8801 440RV6213
FCDP88124450 440 620 450 490 7450 19000 128 430 440RV6221
FCD88130355 440 650 355 494 6700 14000 109 420 316899A
FCDP88132340 440 660 340 492 6710 13700 101 330 635043
FCDP89120435 445 600 435 478 9150 16000 81.2 353 543174
FCDP89127375 445 635 375 496 6240 14600 110 385
FCD90118300 450 590 300 490 3910 12000 69.1 245 315811E
FCDP90118435 450 590 435 435 8150 19000 89.8 345 542648
FCDP90126450 450 630 450 500 6950 17500 131 433 450RV6321
FCD92122320 460 610 320 499 4100 14600 73.3 290 526420
FCD92124320 460 620 320 500 4800 16200 75.3 290 526026
FCD92124400 460 620 400 502 6500 17000 99.0 344 E-4R9209 460RV6211
FCD92130355 460 650 355 509.5 6270 14600 104 380 313031A 541756
FCDP92130424 460 650 424 510 9000 18300 126 450 315196A 513584A
FCDP92130470 460 650 470 509 10400 22400 136 510 314560 518846 E-4R9216 460RV6511
FCDP92132475 460 660 475 508 11000 35000 135 585 517693
FCDP92134500 460 670 500 522 7650 22700 186 596 460RV6721
FCDP92140540 460 700 540 519 12000 37500 191 785 529368
FCDP95120368 475 600 368 504 5500 14600 64.0 235 BC4B326261/HA1
FCDP6130340 480 650 340 522 6550 18400 87.7 320 525884
FCDP96130420 480 650 420 522 8120 23700 108 440 525912
FCDP96130450 480 650 450 525 9000 21200 124 439 316690B 547660 E-4R9609
FCD96136420 480 680 420 528 9800 19300 124 515 319320 533522
FCDP96136500 480 680 500 528 9130 23000 148 605 316624
FCDP96136500E 480 680 500 532 11600 24000 161 585 313516D 514445B E-4R9604
FCDP96136500E1 480 680 500 534 9000 23100 167 630 480RV6801
FCDP96140500 480 700 500 534 12200 34200 167 675 546152V
FCDP96140530 480 700 530 536 11200 31500 184 720 523399
FCDP99123360 495 615 360 530 4030 12000 79.1 235
FCDP100130260 500 650 260 542 4020 10200 69.7 225 319254/VJ202
FCDP100134450E 500 670 450 540 8300 22300 163 458 533023
FCDP100134450 500 670 450 556 9000 22800 144 509 BC4B316515 546335
FCDP100136450 500 680 450 550 10200 22000 141 590 E-4R10016
FCDP100138470 500 690 470 547 7650 22500 141 590 E-4R10016
FCDP100138510 500 690 510 552 9010 24600 171 590 E-4R10006 500RV6921
FCDP100140500 500 700 500 554 11600 38000 174 615 517692
FCDP100140515 500 700 515 554 9100 25200 179 610 E-4R10011 500RV7021
FCDP100142480 500 710 480 558 11200 23200 180 615 316968A 530488 500RV7111
FCDP100144400 500 720 400 558 7920 17600 150 530 BC4B322066
FCDP100144530 500 720 530 560 9950 25300 206 782 500RV7211
FCDP100144530E 500 720 720 568 12700 28500 235 780 314441B 513378A E-4R10015
FCDP102134320 510 670 320 554 4950 13500 91.8 335 E-4R10201 510RV6701
FCDP102136500 510 680 500 560 10400 26000 164 522 BC4B319411 567725A
FCDP102140540 510 700 540 558 8300 25000 169 689 E-4R10202
FCDP102146520E 510 730 520 565 13400 42000 188 745 541646
FCDP102146520 510 730 520 569 9520 22000 202 750 BC4-8009/HB1
FCDP102152550 510 760 550 570 14600 28000 218 950 BC4-8007/HB1 517690
FCDP104140540 520 700 540 564 8200 25500 157 658 E-4R10403
FCDP104147535 520 735 535 574.5 10400 26600 195 740 E-4R10402 520RV7331
FCDP104150530 520 750 530 576 13700 45000 199 810 541647
FCDP106140540 530 700 540 574 8150 26500 160 626 E-4R10603
FCDP102146520E 510 730 520 565 13400 42000 188 745 541646
FCDP102146520 510 730 520 569 9520 22000 202 750 BC4-8009/HB1
FCDP102152550 510 760 550 570 14600 28000 218 950 BC4-8007/HB1 517690
FCDP104140540 520 700 540 564 8200 25500 157 658 E-4R10403
FCDP104147535 520 735 535 574.5 10400 26600 195 740 E-4R10402 520RV7331
FCDP104150530 520 750 530 576 13700 45000 199 810 541647
FCDP106140540 530 700 540 574 8150 26500 160 626 E-4R10603
FCDP110160520E 550 800 520 612 11700 27000 229 895 316115/VJ202 549875
FCDP110160520 550 800 520 622 9450 26500 269 965 E-4R11001
FCDP110160560 550 800 560 610 15300 30500 238 985 BC4B322719/HB1 517688
FCDP112136360 560 680 360 590 4650 16500 76.1 265 E-4R11202
FCDP112160600 560 800 600 620 13000 33400 260 1010 560RV8011
FCDP112164600 560 820 600 625 14200 34000 283 1080 BC4B322930/HA4 517687A
FCDP112164630 560 820 630 625 14400 45200 297 1240 526708
FCDP114150530 570 750 530 622 6750 25200 201 662
FCDP114163594 570 815 594 628 13700 34500 253 1010 E-4R11402 570RV8111
FCDP114166600 570 830 600 635 17600 67800 288 1200 517686
FCDP116170640 580 850 640 648 18000 38000 327 1275 517685
FCDP118164590 590 820 590 649 13100 35100 264 990
FCD120164550 600 820 550 660 1400 33500 254 900 518780
FCDP120164575 600 820 575 660 15000 36000 266 936 315175AC 528518 600RV8212E
FCDP120174540 600 870 540 672 15300 38300 303 1150 315068A 533259 E-4R12002
FCDP120174640E 600 870 640 672 18300 40000 359 1340 315513 517684A E-4R12001 600RV8713
FCDP120174640 600 870 640 682 15100 40000 412 1300 314317A 600RV8711
FCDP120184680 600 920 680 674 22800 67100 393 1800 526235
FCDP122164430 610 820 430 665 9350 23600 184 652 315257A
FCDP122170570 610 850 570 670 13200 34900 268 1040
FCDP122174660 610 870 660 680 15400 41500 365 1440 E-4R12202 610RV8711
FCDP126160360 630 800 360 675 6850 19500 129 440
FCDP126170436 630 850 436 690 7480 23600 211 720 BC2-8012/HB1VJ202
FCDP126180670 630 900 670 698 20800 63500 370 1525 517683
FCDP128174610 640 870 610 697 14200 40000 285 1100 640RV8711
FCDP128176600 640 880 600 700 15000 40800 295 1130
FCDP130180650 650 900 650 704 17200 41500 291 1260 BC4-8002/HA6
FCDP130184670 650 920 670 723 20800 46500 411 1460 313007C 515194A E-4R13005 650RV9212
FCDP130184690 650 920 690 723 16600 45500 423 1550 E-4R13003 650RV9211
FCDP130184690E 650 920 690 724 16700 46500 430 1490
FCDP132164440 660 820 440 702 7480 22800 154 530 239509FA E-4R13201
FCDP132176450 660 880 450 727 7210 23600 256 785 313477/VJ202 509944
FCDP134174530 670 870 530 725 13700 34500 249 827 533258
FCDP134190690 670 950 690 740 22400 50000 417 1606 517682
FCDP134190700 670 950 700 750 14500 47300 487 1670
FCDP136188600 680 940 600 743 19000 53400 329 1295 533683
FCDP136196640 680 980 640 760 21000 45000 452 1750 313154C 524229
FCDP138196715 690 980 715 767 22800 54000 491 1780 313008A 517681 E-4R13802 690RV9831
FCDP138196750 690 980 750 766 19200 53000 508 1850 690RV9812
FCDP140186620 700 930 620 763 17000 44000 350 1197 316967 530487 E-4R14003 700RV9311
FCDP140196700 700 980 700 774 17800 49000 468 1680 700RV9821
FCDP140200710 700 1000 710 770 18900 47400 447 1810
FCDP142200715 710 1000 715 787.5 23200 56000 508 1860 313403C 517680A E-4R14205 710RV1011
FCDP142204710 710 1020 710 785 19300 49100 488 1940
FCDP145200700 725 1000 700 796 18200 53500 463 1730 E-4R14501 725RV1011
FCDP146188500 730 940 500 780 12300 42500 231 920 526447
FCDP146192620 730 960 620 790 17600 45000 346 1220 315982 525438 730RV9611
FCDP146200700 730 1000 700 798 13570 39140 445 1934
FCDP146206750 730 1030 750 809 25500 58500 559 2040 314518B 517679 730RV1011
FCDP150200500 750 1000 500 816 12300 33500 316 1150 314420/VJ202
FCDP150200670 750 1000 670 813 20400 50000 404 1480 315973 524881A 750RV1011
FCDP150218615 750 1090 615 836 21600 43000 514 1966 800494
FCDP151214750 755 1070 750 837 21700 58500 600 2230 755RV1011
FCDP152206750E 760 1030 750 828 20500 61100 496 2000 E-4R15204
FCDP152206750 760 1030 750 834 18200 53500 542 1880 760RV1031
FCDP152216790 760 1080 790 846 23800 65500 668 2440 312979D
FCDP156214780 780 1070 780 853 26500 64000 570 2300 BC4-8015/HB1 540088
FCDP158224810 790 1120 810 875 30000 69500 702 2650 517678
FCD160216700 800 1080 700 870 16500 55000 501 1950 E-4R16004
FCDP160216700E 800 1080 700 878 22800 58500 561 1950 315599A 526169 800RV1011
FCDP160216750 800 1080 750 880 18700 56500 617 2050 E-4R16005 800RV1032
FCDP160230850 800 1150 850 905 25200 68000 932 3150 524137
FCDP164226800 820 1130 800 903 27000 68000 701 2540 BC4B320455 803317 E-4R16406 820RV1117
FCDP164232840 820 1160 840 910 25000 71000 801 2930 E-4R16403
FCDP164232840E 820 1160 840 911 25600 72000 811 2900 820RV1111A
FCDP166216710 830 1080 710 896 22800 61000 495 1724 567729
FCDP168232840 840 1160 840 920 24900 71000 725 2840 E-4R16801 840RV1111A
FCDP168236880 840 1180 880 917 33500 86000 729 3300
FCDP170230650 850 1150 650 941 15700 51000 649 1980 E-4R17001
FCDP170230800 850 1150 1150 930 19700 71000 968 2430 E-4R17003
FCDP170230840 850 1150 840 928 30500 76500 714 2630 315826A B) 545636 850RV1114
FCDP170236650 850 1180 650 945 19600 54500 679 2270 E-4R17004 850RV1133
FCDP170236850E 850 1180 850 928 24100 78500 722 2970 E-4R17002
FCDP170236850 850 1180 850 940 24600 72000 839 2850 850RV1111
FCDP170244900 850 1220 900 940 28000 82400 888 2720 523397
FCDP172226670 860 1130 670 934 18400 56500 545 1780 860RV1132
FCDP172228750 860 1140 750 938 20100 60900 644 2080
FCDP173236750 865 1180 750 945.3 27500 67000 668 2462 bc4b319668 566883
FCDP176228800 880 1140 800 946 23600 77400 591 2210
FCDP180244840 900 1220 840 989 31500 80000 865 3060 316043 527048 900RV1212
FCDP180256930 900 1280 930 1000 39000 93000 1083 4300 313528C 541812 900RV1213
FCDP184256865 920 1280 865 1015 28000 80000 974 3510 920RV1211A
FCDP1882641000 940 1320 1000 1029 41500 98000 1074 4375
FCDP190260850 950 1300 850 1044 27200 91100 976 3500
FCDP190272975 950 1360 975 1075 34100 100000 1513 4850 BC4B319862
FCDP1902721000 950 1360 1000 1075 38000 110000 1551 5020 314520C 517369A 950RV1311
FCDP196262880 980 1310 880 1061.7 25700 82000 899 3350 319303
FCDP1902721000 950 1360 1000 1075 38000 110000 1551 5020 314520C 517369A 950RV1311
FCDP196262880 980 1310 880 1061.7 25700 82000 899 3350 319303
FCDP1962721000 980 1360 1000 1080 41500 106000 1262 4671 517740
FCDP198272760 990 1360 760 1080 30500 68000 868 3269 522071
FCDP200262880 1000 1310 880 1080 23400 88500 897 3260 E-4R20001
FCDP200272800E 1000 1360 800 1090 25000 85000 922 3530 E-4R20002
FCDP200272800 1000 1310 800 1101 24700 80000
FCDP206276850 1030 1380 850 1124 29800 90900 1055 3680 E-4R20601
FCDP2082881000 1040 1440 1000 1133 45000 106000 517675
FCDP212272800 1060 1360 800 1137 32500 91500 829 3005 521910
FCDP2203001000 1100 1500 1000 1194 47500 116000 1322 5305 517737
FCDP2243161150 1120 1580 1150 1255 134500 2260 7400 1120RV1511
FCDP230300760 1150 1500 760 1240 33500 86500 1002 3622 518206
FCDP2403181050E 1200 1590 1050 1295 36000 133000 1525 6220 E-4R24002
FCDP2403181050 1200 1590 1050 1305 47500 134000 1693 5970 315494B 518649
