双列圆锥滚子轴承英制系列

双列圆锥滚子轴承英制系列

双列圆锥滚子轴承英制系列

双列圆锥滚子英制轴承，按接触角的大小划分有：小角（9°＜a≤25°）和大锥角（＞25°）之分。圆锥滚子轴承的轴向承载能力取决于接触角a，既外圈的滚道角度，接触角a越大，轴向承载能力越大。

咨询热线：13861477666

注：询购请选择型号

产品尺寸与参数

TRC2001

TRC2002

TRC2003

TRC2004

TRC2005

TRC2006

TRC2007

TRC2008

TRC2009

TRC2010

TRC2011

TRC2012

TRC2013

TRC2014

TRC2015

TRC2016

TRC2017

TRC2018

TRC2019

TRC2020

TRC2021

TRC2022

TRC2023

TRC2024

TRC2025

TRC2026

TRC2027

TRC2028

TRC2028

TRC2029

TRC2030

TRC2031

TRC2032

TRC2033

TRC2034

TRC2035

TRC2036

TRC2037

TRC2038

TRC2039

TRC2040

TRC2041

TRC2042

TRC2043

TRC2044

TRC2045

TRC2046

TRC2047

TRC2048

TRC2049

TRC2050

TRC2051

TRC2052

TRC2053

TRC2054

TRC2055

TRC2056

TRC2057

TRC2058

TRC2059

TRC2060

TRC2061

TRC2062

TRC2063

TRC2064

TRC2065

TRC2067

TRC2068

TRC2069

TRC2070

TRC2071

TRC2072

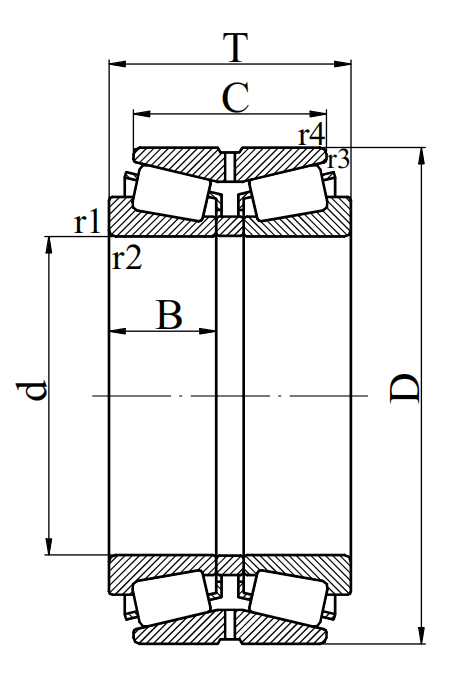

查看	型号	d	D	B	T	C	H	Fw	Cr	Cor	e	Y₁	Y₂	Yo	内圈	轴承	SKF	FAG	NTN	NSK	TMKEN
查看	型号	外形尺寸 mm							基本额定载荷KN		计算参数				参考重量kg		参考国外轴承代号
	TRC2001	152.400	222.250	84.138	84.138				605	605	0.33	2.00	3.00	2.00		11.5	331387				M231649D-M231610
	TRC2002	177.800	247.650	90.488	90.488				660	1500	0.44	1.50	2.30	1.40		13.2	331814	540696			37790D-67720
	TRC2003	177.800	288.925	123.825	123.825				1300	2280	0.31	2.20	3.30	2.20		31.5	BT2B332534/HA1				94706D-94113
	TRC2004	203.200	317.500	133.350	133.350				1170	2400	0.52	1.30	1.90	1.30		40.5	BT2B332799
	TRC2005	203.200	368.300	152.400	158.750				1870	3350	0.40	1.70	2.50	1.60		75.2	BT2B332683/HA1	541379
	TRC2006	206.375	282.575		87.312				704	1660	0.50	1.35	2.00	1.30		17.3	331388
	TRC2007	206.375	336.550	184.150	180.975				2120	4300	0.33	2.00	3.00	2.00		66.5	BT2B328834				H242649D-H242610
	TRC2008	220.000	340.000	200.000	140.000				1650	3350	0.43	1.60	2.30	1.60		50.5	BT2B332873/HA4
	TRC2009	234.950	327.025	93.662	93.662				842	2120	0.40	1.70	2.50	1.60		25.5	BT2B332492
	TRC2010	240.000	480.000	200.000	220.000				3360	5500	0.72	0.94	1.40	0.90		183	BT2B332931
	TRC2011	254.000	358.775	130.175	130.175				1540	3550	0.33	2.00	3.00	2.00		43.5	332296/HA1	511577			M249748-M249710
	TRC2012		438.150	165.100	165.100				2510	4250	0.35	1.90	2.90	1.80		100	BT2B332536/HA1	547757
	TRC2013	269.875	381.000	136.525	136.525				1650	3750	0.33	2.00	3.00	2.00		51.2	331223A	517563A			M252349D-M252310
	TRC2014	279.587	380.898	117.475	117.475				1230	3200	0.43	1.60	2.30	1.60		41.5	BT2B332899/HA1
	TRC2015	288.925	406.400	234.950	165.100				2240	4900	0.33	2.00	3.00	2.00		73.5	BT2B332870/HA4
	TRC2016	300.038	422.275	150.812	150.812				2050	4750	0.33	2.00	3.00	2.00		70.3	331951	542664			HM256849D-HM256810
	TRC2017	303.212	495.300	263.525	263.525				4570	9800	0.33	2.00	3.00			212	BT2B332685/HA1
	TRC2018	317.500	422.275	128.588	128.588				1680	4150	0.31	2.20	3.30	2.20		51.5	BT2B328699G/HA1				LM528648DW-LM528610
	TRC2019	317.500	422.275	128.588	166.688				1680	4150	0.31	2.20	3.30	2.20		92.5	BT2B328695A/HA1	510687A			HM261049TD-HM261010
	TRC2020	333.375	469.900	231.775	166.688				2460	5700	0.33	2.00	3.00	2.00		98.8	BT2B332871/HA4
	TRC2021	342.900	533.400	146.050	139.700				2380	4400	0.33	2.00	3.00	2.00		115	331713A	515956
	TRC2022	342.900	533.400	146.050	139.700				2380	4400	0.33	2.00	3.00	2.00		115	331713B
	TRC2023	343.052	457.098	122.238	122.238				1510	3400	0.48	1.40	2.10	1.40		54.6	332240A				LM761649DW-LM761610
	TRC2024	346.075	488.950	95.250	104.775				1170	2750	0.50	1.35	2.00	1.30		62.5	BT2B332913/HB1
	TRC2025	346.075	488.950	174.625	174.625				2640	6300	0.33	2.00	3.00	2.00		113	BT2B328410C/HA1				HM262749TD-HM262710
	TRC2026	346.075	488.950	174.625	174.625				2550	6000	0.33	2.00	3.00	2.00		110	331527C				EE161362D-EE161925
	TRC2027	360.000	680.000	300.000	330.000				7210	13400	0.60	1.10	1.70	1.10		540	331729
	TRC2028	363.300	523.875	185.738	185.738				3140	7500	0.33	2.00	3.00	2.00		133	BTB331836				HM265049D-HM265010
	TRC2028	363.300	523.875	185.738	185.738				3140	7500	0.33	2.00	3.00	2.00		133	BTB331836				HM265049D-HM265010
	TRC2029	368.300	523.875	185.738	185.738				3140	7500	0.33	2.00	3.00	2.00		140	BT2B332468A/HA1				HM265049TD-HM265010
	TRC2030	368.300	596.900	158.750	165.100				3080	5850	0.40	1.70	2.50	1.60		160	331905
	TRC2031	384.175	546.100	193.675	193.675				3470	8300	0.33	2.00	3.00	2.00		152	331158A	518240			HM266449DW-HM266410
	TRC2032	390.000	546.100	141.288					2200	5100	0.48	1.40	2.10	1.40
	TRC2033	406.400	546.100	138.113	138.113				2200	5100	0.48	1.40	2.10	1.40		89.3	BT2B331840C/HA1				LM767749DW-LM767710
	TRC2034	408.400	546.100	98.000	120.000				1510	3450	0.88	0.77	1.15	0.80		76.5	BT2B328874/HA1
	TRC2035	408.400	546.100	125.000	150.000				1830	4750	0.83	0.80	1.20	0.80		99.4	BT2B328466/HA1
	TRC2036	409.575	546.100	161.925	161.925				2510	6550	0.43	1.60	2.30	1.60		110	331714B				M667947DW-M667910
	TRC2037	415.925	590.550	209.550	209.550				3910	9650	0.33	2.00	3.00	2.00		192	BT2B328283/HA1				M268749DW-M268710
	TRC2038	415.925	590.550	209.550	209.550				3910	9650	0.33	2.00	3.00	2.00		192	331445
	TRC2039	430.000	535.000	84.000	84.000				1080	3000	0.54	1.30	1.80	1.30		44.5	BT2B334013/HA1
	TRC2040	447.625	635.000	223.838	223.838				4400	11000	0.33	2.00	3.00	2.00		236	331562	518667			M270749DW-M270710
	TRC2041	447.625	635.000	223.838	223.838				4400	11000	0.33	2.00	3.00	2.00		246	BT2B332911C/HA1				M270749TD-M270710
	TRC2042	447.625	635.000	223.838	223.838				4400	11000	0.33	2.00	3.00	2.00		246	BT2B332911B/HB1				M270749TD-M270710/CL3
	TRC2043	450.000	595.000	178.000	178.000				2970	8150	0.33	2.00	3.00	2.00		140	BT2B328523/HA1				M270749DA/M270410
	TRC2044	464.000	615.950	136.000	150.000				2160	5850	0.83	0.80	1.20	0.80		125	BT2B328361/HA1
	TRC2045	489.026	634.873	152.400	152.400				2750	7350	0.35	1.90	2.90	1.80		130	BT2B331848				EE243193D-243250
	TRC2046	491.000	635.000	128.000	148.000				1900	5300	1.00	0.68	1.00	0.66		120	BT2B328381/HA1
	TRC2047	500.000	730.000	280.000	280.000				6600	15600	0.31	2.20	3.30	2.20		331676A	420
	TRC2048	501.650	711.200	250.825	250.825				5500	13700	0.33	2.00	3.00	2.00		330	331182	503772			M274149D-M274110
	TRC2049	501.650	673.100	184.150	184.150				3910	9650	0.31	2.20	3.30	2.20		190	BT2B332547/HA1				M275349D-M275310
	TRC2050	519.112	736.600	258.762	258.762				6050	15600	0.33	2.00	3.00	2.00		370	BT2B332662/HB1
	TRC2051	519.112	736.600	258.762	258.762				6050	15600	0.33	2.00	3.00	2.00		370	BT2B334009/HB
	TRC2052	522.000	690.000	160.000	180.000				2860	8300	0.79	0.85	1.25	0.80		190	BT2B328359/HA1
	TRC2053	536.575	761.873	269.875	269.875				6270	16000	0.33	2.00	3.00	2.00		410	331682	526165			M276448DW-M276410
	TRC2054	558.800	736.600	196.850	196.850				4290	11600	0.35	1.90	2.90	1.80		235	331607A	544145			LM377448DW-LM377410
	TRC2055	558.800	736.600	196.850	196.850				4290	11600	0.35	1.90	2.90	1.80		235	331607B
	TRC2056	560.000	820.000	242.000	242.000				5010	11400	0.88	0.77	1.15	0.80		425	BT2B332626/HA7
	TRC2057	571.500	812.800	285.750	285.750				7210	18000	0.33	2.00	3.00	2.00		500	BT2B331854/HA1	543718			M278749DW-M278710
	TRC2058	571.500	812.800	285.750	285.750				7210	18000	0.33	2.00	3.00	2.00		500	331476
	TRC2059	580.000	830.000	280.000	280.000				6820	166000	0.31	2.20	3.30	2.20		515	331677
	TRC2060	609.600	787.400	171.450	171.450				4020	10600	0.37	1.80	2.70	1.80		218	BT2B331858/HA1				EE649241DW-649310
	TRC2061	609.600	820.000	171.450	171.450				4020	10600	0.37	1.80	2.70	1.80		265	BT2B332424/HA3	538086
	TRC2062	650.000	1030.000	270.000	270.000				8800	18300	0.31	2.20	3.30	2.20		900	BT3B328306/HA4
	TRC2063	660.400	812.800	176.212	176.212				3580	11200	0.33	2.00	3.00	2.00		195	331198				L281149D-L281110
	TRC2064	682.625	965.200	338.138	338.138				9520	25000	0.33	2.00	3.00	2.00		815	333129/HA4				M282249D-M282210
	TRC2065	682.625	965.200	338.138	338.138				9520	25000	0.33	2.00	3.00	2.00		815	332129A/HA4
	TRC2067	710.000	900.000	197.000	197.000				4730	13200	0.35	1.90	2.90	1.80		325	331581A	532828
	TRC2068	800.000	1260.000	375.000	375.000				14700	33500	0.33	2.00	3.00	2.00		1850	BT2B334032/HA4
	TRC2069	863.600	1130.300	323.850	323.850				10600	31000	0.33	2.00	3.00	2.00		895	331590
	TRC2070		1130.300	323.850	323.850				10600	31000	0.33	2.00	3.00	2.00		895	331590A				LM286249DGW-LM286210
	TRC2071	901.700	1295.400	438.150	450.850				16800	43000	0.35	1.90	2.90	1.80		2000	331306	539945			EE634356D-634510
	TRC2072	939.800	1333.500	463.550	463.550				17600	49000	0.33	2.00	3.00	2.00		2230	331350				LM287849DW-LM287810
